Global-shutter imaging
Capture 1080P video at 30 FPS, with 60 FPS and 1920 × 1200 available as optional configurations.

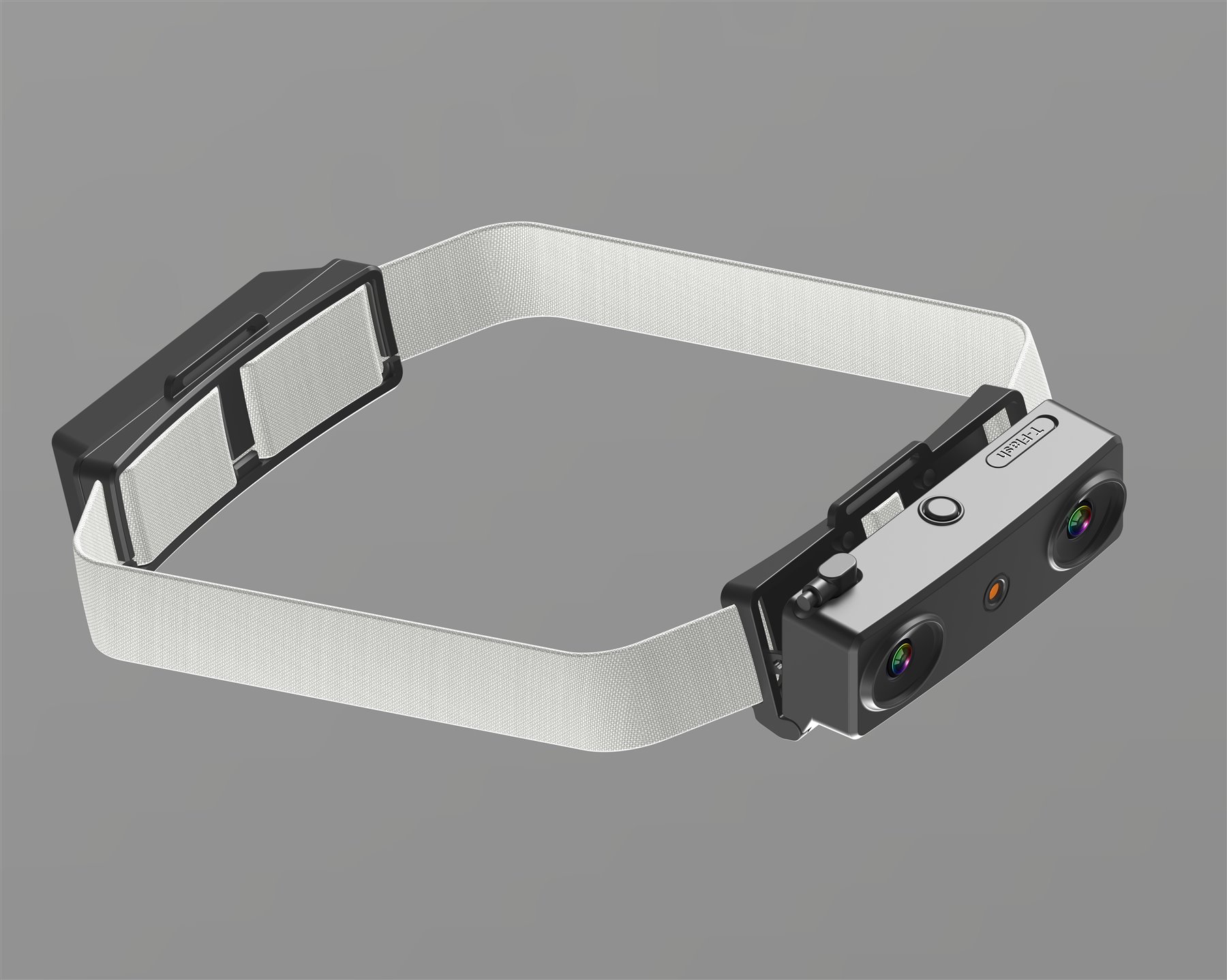

EGO R9 Egocentric Recording Headset
An Egocentric Recording Headset with synchronized first-person video and motion data.
The Head-mounted Embodied AI Data Collection platform combines 1080P capture, a 120° wide-angle lens, a 6-axis IMU above 200 Hz, shared clock support, and global timestamps for robot learning and SLAM DATA workflows.
6-axis inertial data
The integrated IMU samples above 200 Hz for motion-aware SLAM DATA capture and visual-inertial research.
Unified timing
Shared-clock and global-timestamp support helps align image and motion data across a capture workflow.
Field-ready interfaces
Type-C, T-Flash storage, microphone, adjustable camera angle, replaceable strap, and external battery support.
R9 specification table
Product parameters from the supplied manufacturer PDF.
Optional values are identified explicitly. The position-accuracy value below is reproduced as written in the source specification.
| Group | Parameter | R9 specification |
|---|---|---|
| RGB camera | Frame rate | 30 FPS; 60 FPS optional |
| Resolution | 1080P; 1920 × 1200 optional | |
| Shutter type | Global shutter | |
| Field of view | 120° wide-angle lens | |
| Timing & calibration | Synchronized shared unified clock | Supported |
| Global timestamp | Supported | |
| Camera intrinsics | Supported | |
| Adjustable camera angle | Supported | |
| Laser positioning | Supported for operation-area positioning | |
| IMU | Axes | 6-axis |
| Sampling rate | Above 200 Hz | |
| Position accuracy | ≥ 5 mm, as stated in the source PDF | |
| Video & audio | Format | MP4 |
| Resolution | 1080P | |
| Frame rate | 30 FPS; 60 FPS optional | |
| Codec / microphone | H.265 / microphone supported | |
| Interface & wear | USB | Type-C |
| Storage | T-Flash memory card supported | |
| Head strap | Replaceable | |
| External battery | Supported; specification states approximately 5 working hours |
Source: EGO-centric camera R9 specification, supplied July 2026. Confirm optional configuration and final acceptance criteria with the product team.
Configuration check
Confirm the right R9 setup before ordering.
Tell us your required resolution, frame rate, synchronization workflow, quantity, and delivery country.
